1. Standby power : 28.0 kw

2.Engine Make & Model: Perkins 404C-22G2 HS

3.Alternator Model: LL1012P

4.Induction: Naturally Aspirated

5.Cooling Method: Water Governing

6.Type: Mechanical Governing

7.Class: ISO 8528 G2

8.Compression Ratio: 23.3:1

9.Displacement: l (cu.in) 2.2 (135.2)

10.Bore/Stroke: mm (in) 84.0 (3.3)/100.0 (3.9)

11.Moment of Inertia: kg m² (lb. in²) 1.10 (3759)

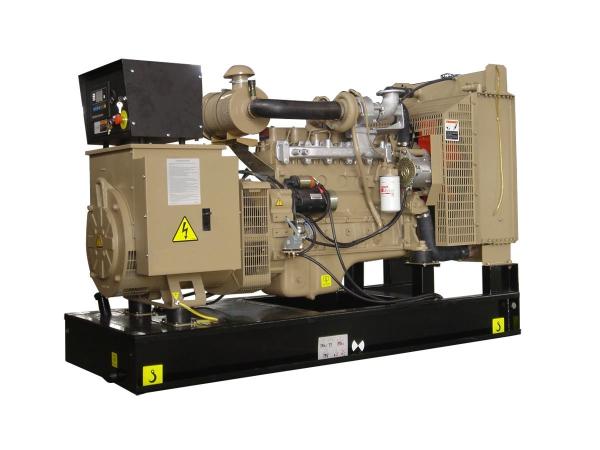

1500 RPM Perkins Engine Generator , 404C-22G2 HS

• Refer to ratings definitions on page 4.

Ratings at 0.8 power factor.

PH35E2

Engine Technical Data

Physical Data

Manufacturer: Perkins

Model: 404C-22G2 HS

No. of Cylinders/Alignment: 4 / In Line

Cycle: 4 Stroke

Induction: Naturally Aspirated

Cooling Method: Water

Governing Type: Mechanical

Governing Class: ISO 8528 G2

Compression Ratio: 23.3:1

Displacement: l (cu.in) 2.2 (135.2)

Bore/Stroke: mm (in) 84.0 (3.3)/100.0 (3.9)

Moment of Inertia: kg m² (lb. in²) 1.10 (3759)

Engine Electrical System:

-Voltage/Ground: 12/Negative

-Battery Charger Amps: 55

Weight: kg (lb)

- Dry: 218 (481)

- Wet: 234 (517)

Air System 50 Hz 60 Hz

Air Filter Type: Replaceable

Element Combustion Air Flow:m³/min (cfm)

-Standby: 2.9 (102) -

-Prime: -

- Max. Combustion Air Intake

Restriction: kPa (in H2O) 6.4 (25.7)

- Radiator Cooling Air Flow:m³/min (cfm) 71.0 (2507)

- External Restriction to

Cooling Air Flow: Pa (in H2O) 125 (0.5)

Cooling System 50 Hz 60 Hz

Cooling System Capacity:l (US gal) 6.8 (1.8)

- Water Pump Type: Centrifugal

Heat Rejected to Water &Lube Oil: kW (Btu/min)

-Standby: 33.5 (1905)

-Prime: -

- Heat Radiation to Room:

kW (Btu/min)

-Standby: 13.2 (751)

Cooling System 50 Hz 60 Hz

Cooling System Capacity:l (US gal) 6.8 (1.8)

- Water Pump Type: Centrifugal Heat Rejected to Water &

Lube Oil: kW (Btu/min)

-Standby: 33.5 (1905) -

-Prime: -

- Heat Radiation to Room:

kW (Btu/min)

-Standby: 13.2 (751) -

Performance 50 Hz 60 Hz

Engine Speed: RPM 3000

- Gross Engine Power: kW (hp)

-Standby: 34.4 (46.0)

-Prime:

- BMEP: kPa (psi)

-Standby: 1242.0 (180.1)

-Prime:

- Regenerative Power: kW 19.0

LubriCAT-parts-partsion System

Oil Filter Type: Spin-On, Full Flow

Total Oil Capacity l (US gal): 10.6 (2.8)

Oil Pan l (US gal): 8.9 (2.4)

Oil Type: AP1CH4 15W-40

Cooling Method: Water

Fuel System

Fuel Filter Type: Replaceable Element Recommended

Fuel: Class A2 Diesel

Fuel Consumption: l/hr (US gal/hr)

110% 100% 75% 50%

Load Load Load Load

-

50 Hz - - - -

60 Hz - - - -

PH35E2

50 Hz 10.1 (2.7) 7.9 (2.1) 6.2 (1.6)

60 Hz - - -

(based on diesel fuel with a specific gravity of 0.85 and conforming to BS2869, Class A2)

Exhaust System 50 Hz 60 Hz

Silencer Type: Level 1

Silencer Model & Qty: MXC0996 (1)

Pressure Drop Across

Silencer System: kPa (in Hg) 6.00 (1.772)

- Silencer Noise Reduction

Level: dB 27.6

- Max. Allowable Back

Pressure: kPa (in. Hg) 10.2 (3.0)

- Exhaust Gas Flow: m³/min (cfm)

-Standby: 8.5 (300)

-Prime:

- Exhaust Gas Temperature: °C (°F)

m³/min (cfm)

-Standby: 570 (1058)

-Prime:

PH35E2

Alternator Performance Dat

Reactances shown are applicable to prime ratings

• Based on 30% voltage dip. Improved motor starting capability is available with optional Permanent Magnet generator or AREP excitation.

** With optional Permanent Magnet generator or AREP excitation.

Alternator Technical Data

PH35E2

Technical Data

3 Phase Ratings and Performance at 50 Hz, 3000 RPM

3 Phase Ratings and Performance at 60 Hz,

- RPM

Definitions

Standby Rating

These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3).

Prime Rating

These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.

Standard Reference Conditions

Note: Standard reference conditions 27°C (80°F) Air Inlet Temp, 152.4m (500ft) A.S.L. 60% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.

Weights and Dimensions

Weights: kg (lb) Dimensions: mm (in)

General Data

Documents

A full set of operation and maintenance manuals, circuit wiring diagrams, and commissioning/fault finding instruction leaflets.

Generating Set Standards

The equipment meets the following standards: BS5000, ISO 8528, ISO 3046, IEC 60034, VDE 0530, NEMA MG-1.22.

FG Wilson is a fully accredited ISO 9001 company.

Warranty

All equipment carries full manufacturer's warranty.
