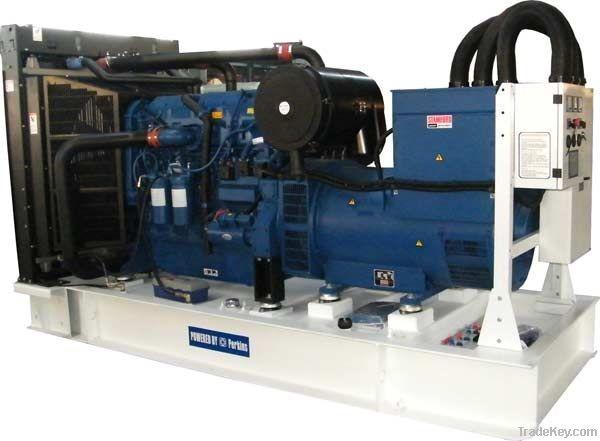

    60 Hz Perkins Generator , 1306-E87TA300 , 200 kW , 4 Stroke

    Ask Lasest Price
    Brand Name : GSKA
    Model Number : JP-P220HE
    Price : Negotiable
    Delivery Time : 3-5 days on receipt of official sales contract
    Payment Terms : L/C,D/P,D/A, Alipay, West Union, TT. Cash,Paypal
    Supply Ability : 500 pieces per Month
    • Product Details
    • Company Profile

    60 Hz Perkins Generator , 1306-E87TA300 , 200 kW , 4 Stroke


    1. Standby power: 176.0 KW

    2.Engine Make & Model: Perkins 1306-E87TA300

    3.Alternator Model: LL5014F

    4.Base Frame Type: Heavy Duty FabriCAT-parts-partsed Steel

    5.Circuit Breaker Type: 3 Pole MCCB

    6.No. of Cylinders/Alignment: 6 / In Line

    7.Cycle: 4 Stroke

    8.Induction: Turbocharged Air To Air Charge Cooled

    9.Cooling Method: Water Governing

    10.Type: Electronic Governing

    11.Class: ISO 8528 G2

    12.Compression Ratio: 16.9:1

    13.Displacement: l (cu.in) 8.7 (530.9)

    14.Bore/Stroke: mm (in) 116.6 (4.6)/135.9


    480V, 60 Hz Perkins Generator , 1306-E87TA300

    Output Ratings

    Generating Set Model

    * P220HE Prime* Standby*

    380-415V, 50 Hz

    200.0 kVA 220.0 kVA

    160.0 kW 176.0 kW

    480V, 60 Hz

    225.0 kVA 250.0 kVA

    180.0 kW 200.0 kW

    • Refer to ratings definitions on page 4.

    Ratings at 0.8 power factor.


    Technical Data

    Engine Make & Model:

    Perkins 1306-E87TA300

    Alternator Model:

    LL5014F

    Base Frame Type:

    Heavy Duty FabriCAT-parts-partsed Steel

    Circuit Breaker Type:

    3 Pole MCCB

    Frequency:

    50 Hz 60 Hz

    Engine Speed: RPM

    1500 1800

    Fuel Tank Capacity: litres (US gal)

    350 (92.5)

    Fuel Consumption: P200H l/hr (US gal/hr)

    43.1 (11.4) 50.7 (13.4)

    Fuel Consumption: P220HE l/hr (US gal/hr)

    47.0 (12.4) 56.9 (15.0)

    P200H / P220HE


    Engine Technical Data


    Physical Data

    Manufacturer: Perkins

    Model: 1306-E87TA300

    No. of Cylinders/Alignment: 6 / In Line

    Cycle: 4 Stroke

    Induction: Turbocharged Air To Air Charge Cooled

    Cooling Method: Water Governing

    Type: Electronic Governing

    Class: ISO 8528 G2

    Compression Ratio: 16.9:1

    Displacement: l (cu.in) 8.7 (530.9)

    Bore/Stroke: mm (in) 116.6 (4.6)/135.9 (5.4)

    Moment of Inertia: kg m² (lb. in²) 1.54 (5266)

    Engine Electrical System:

    -Voltage/Ground: 24/Negative

    -Battery Charger Amps: 45

    Weight: kg (lb)

    - Dry: 671 (1479)

    - Wet: 698 (1539)


    Air System 50 Hz 60 Hz


    Air Filter Type: Replaceable

    Element Combustion Air Flow:

    m³/min (cfm)

    -Standby: 9.8 (346) 19.2 (678)

    -Prime: 8.9 (314) 18.5 (653)

    Max. Combustion Air Intake

    Restriction: kPa (in H2O) 6.2 (24.9) 6.2 (24.9)

    Radiator Cooling Air Flow:

    m³/min (cfm) 324.0 (11442) 414.0 (14620)

    External Restriction to

    Cooling Air Flow: Pa (in H2O) 125 (0.5) 125 (0.5)


    Cooling System 50 Hz 60 Hz


    Cooling System Capacity:

    l (US gal) 39.8 (10.5) 39.8 (10.5)

    Water Pump Type: Centrifugal

    Heat Rejected to Water & Lube Oil: kW (Btu/min)

    -Standby: 82.5 (4692) 107.3 (6102)

    -Prime: 73.0 (4151) 95.9 (5454)

    Heat Radiation to Room:

    kW (Btu/min)

    -Standby: 49.8 (2832) 62.3 (3543)

    -Prime: 38.8 (2207) 52.7 (2997)

    Radiator Fan Load: kW (hp) 7.0 (9.4) 12.0 (16.1)

    Cooling system designed to operate in ambient conditions up to 50°C (122°F).


    Performance 50 Hz 60 Hz


    Engine Speed: RPM 1500 1800

    Gross Engine Power: kW (hp)

    -Standby: 224.0 (300.0) 242.5 (325.0)

    -Prime: 205.5 (276.0) 223.5 (300.0)

    BMEP: kPa (psi)

    -Standby: 2058.0 (298.5) 1857.0 (269.3)

    -Prime: 1888.0 (273.9) 1711.0 (248.2)

    Regenerative

    Power: kW 20.8 28.6


    LubriCAT-parts-partsion System


    Oil Filter Type: Spin-On, Full Flow

    Total Oil Capacity l (US gal): 26.4 (7.0)

    Oil Pan l (US gal): 22.7 (6.0)

    Oil Type: API CG4 15W-40

    Cooling Method: Water


    Fuel System

    Fuel Filter Type: Replaceable Element Recommended

    Fuel: Class A2 Diesel

    Fuel Consumption: l/hr (US gal/hr)


    110% 100% 75% 50%

    Load Load Load Load

    P200H


    50 Hz 47.0 (12.4) 43.1 (11.4) 33.3 (8.8) 23.9 (6.3)

    60 Hz 56.9 (15.0) 50.7 (13.4) 38.1 (10.1) 27.4

    (7.2)


    P220HE


    50 Hz 47.0 (12.4) 36.3 (9.6) 25.8 (6.8)

    60 Hz 56.9 (15.0) 42.1 (11.1) 29.6 (7.8)


    (based on diesel fuel with a specific gravity of 0.85 and conforming to BS2869, Class A2)


    Exhaust System 50 Hz 60 Hz


    Silencer Type: Level 1

    Silencer Model & Qty: SD100 (1) Pressure Drop Across

    Silencer System: kPa (in Hg) 8.70 (2.569) 8.70 (2.569)

    Silencer Noise Reduction

    Level: dB 12 10

    Max. Allowable Back

    Pressure: kPa (in. Hg) 10.7 (3.2) 10.7 (3.2)

    Exhaust Gas Flow:

    m³/min (cfm)

    -Standby: 29.7 (1049) 49.2 (1737)

    -Prime: 27.9 (985) 47.7 (1685)

    Exhaust Gas Temperature: °C (°F)

    m³/min (cfm)

    -Standby: 573 (1064) 487 (908)

    -Prime: 545 (1013) 473 (884)

    P200H / P220HE


    Alternator Performance Data



    Data Item

    50 Hz 60 Hz

    415/240V

    400/230V

    230/115V

    200/115V

    380/220V

    220/110V

    220/127V

    480/277V

    240/139V

    380/220V

    220/110V

    240/120V

    208/120V

    230/115V

    440/254V

    220/127V

    Motor Starting Capability* kVA

    414

    389

    356

    457

    454

    303

    355

    332

    392

    Short Circuit Capacity** %

    300

    300

    300

    300

    300

    300

    300

    300

    300


    Reactances: Per Unit

    Xd X'd X''d

    2.790


    0.140


    0.082

    3.010


    0.150


    0.089

    3.330


    0.160


    0.098

    2.240


    0.110


    0.066

    2.820


    0.140


    0.083

    4.200


    0.210


    0.124

    3.750


    0.180


    0.111

    3.970


    0.190


    0.117

    3.360


    0.160


    0.099


    Reactances shown are applicable to prime ratings

    • Based on 30% voltage dip. Improved motor starting capability is available with optional Permanent Magnet generator or AREP excitation.

    ** With optional Permanent Magnet generator or AREP excitation.


    Alternator Technical Data


    Physical Data Operating Data

    Manufacturer: FG WILSON

    Overspeed: RPM 2250

    Model: LL5014F

    Voltage Regulation (steady state) (%): + /- 0.5

    No. of Bearings: 1

    Wave Form NEMA = TIF: 50

    Insulation Class: H

    Wave Form IEC = THF: 2.0%

    Winding Pitch Code:2/3 - 6

    Total Harmonic Content LL/LN:4.0%

    Wires: 12

    Supression is in line with European Standard

    Radio Interference: EN61000-6

    Ingress Protection Rating: IP23

    Radiant Heat: kW (Btu/min)

    -50 Hz: 16.6 (944)

    -60 Hz: 18.5 (1052)

    Excitation System: SHUNT

    AVR Model:R448

    P200H / P220HE


    Technical Data


    3 Phase Ratings and Performance at 50 Hz, 1500 RPM

    3 Phase Ratings and Performance at 60 Hz, 1800 RPM



    Voltage Prime Model Standby Model Voltage Prime Model Standby Model

    P200H P220HE P200H P220HE


    kVA kW

    kVA kW


    kVA kW

    kVA kW

    415/240V

    200.0 160.0

    220.0 176.0

    480/277V

    225.0 180.0

    250.0 200.0

    400/230V

    200.0 160.0

    220.0 176.0

    220/127V

    225.0 180.0

    250.0 200.0

    380/220V

    200.0 160.0

    220.0 176.0

    380/220V

    210.0 168.0

    231.0 184.8

    230/115V

    200.0 160.0

    220.0 176.0

    240/120V

    225.0 180.0

    249.0 199.2

    220/127V

    180.0 144.0

    200.0 160.0

    230/115V

    225.0 180.0

    249.0 199.2

    220/110V

    200.0 160.0

    220.0 176.0

    440/254V

    220.0 176.0

    242.0 193.6

    200/115V

    200.0 160.0

    220.0 176.0

    220/110V

    210.0 168.0

    231.0 184.8




    208/120V

    225.0 180.0

    250.0 200.0




    230/115V

    225.0 180.0

    249.0 199.2


    Definitions

    Standby Rating

    These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3).


    Prime Rating

    These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.


    Standard Reference Conditions

    Note: Standard reference conditions 27°C (80°F) Air Inlet Temp, 152.4m (500ft) A.S.L. 60% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.



    Weights and Dimensions


    Weights: kg (lb) Dimensions: mm (in)

    Net (+ lube oil)

    2015 (4442)

    Length

    2960 (116.5)

    Wet (+ lube oil & coolant)

    2052 (4524)

    Width

    1003 (39.5)

    Fuel, lube oil & coolant

    2347 (5174)

    Height

    1718 (67.6)


    General Data


    Documents

    A full set of operation and maintenance manuals, circuit wiring diagrams, and commissioning/fault finding instruction leaflets.


    Generating Set Standards

    The equipment meets the following standards: BS5000, ISO 8528, ISO 3046, IEC 60034, VDE 0530, NEMA MG-1.22.


    Warranty

    All equipment carries full manufacturer's warranty.
