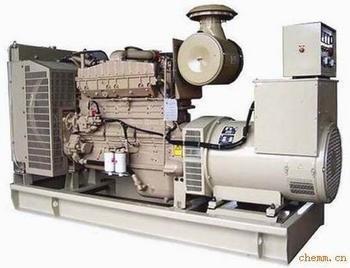

    160KW / 200KVA Cummins Diesel Generators , 6CTAA8.3-G2

    Ask Lasest Price
    Brand Name : GSKA
    Model Number : JP-C176
    Price : Negotiable
    Delivery Time : 30 days
    Payment Terms : T/T L/C, 30% deposit,70% before delivery
    Supply Ability : 100 units/ Per month
    • Product Details
    • Company Profile

    160KW / 200KVA Cummins Diesel Generators , 6CTAA8.3-G2


    1, Model:DCEC Cummins 6CTAA8.3-G2, 4-cycle

    2, Standby Power:176KW / 220KVA 50HZ

    3, Prime Power: 160KW / 200KVA 50HZ

    3, Air Intake System:Turbo, Water/Air cooling

    4, Fuel System:PB/W type fuel pump

    5, Cylinder Arrangement:6 in line

    6, Rated RPM:1500rpm

    7, Governor Type:Electronic

    8, Protection Grade:IP23

    9, Connecting Type:3 Phase and 4 Wires, “Y” type connecting


    6CTAA8.3-G2 Cummins Diesel Generators , 160KW / 200KVA


    Standby Power(50Hz)

    176KW / 220KVA

    Prime Power(50Hz)

    160KW / 200KVA


    Dimension & Weight


    Open Type with Base Fuel Tank

    Overall Size: 2490(mm)×960(mm)×1990(mm)

    Weight: 1950 kg


    General Features:


    Engine(DCEC Cummins 6CTAA8.3-G2)

    Radiator 50OC max, fans are driven by belt, with safety guard

    24V charge alternator

    Alternator: single bearing alternator IP23, insulation class H/H

    Absorber

    Dry type air filter, fuel filter, oil filter

    Main line circuit breaker

    Standard control panel

    Two12V batteries, rack and cable

    Ripple flex exhaust pipe, exhaust siphon, flange, muffler

    User manual


    Engine Data


    Manufacturer / Model:

    DCEC Cummins 6CTAA8.3-G2, 4-cycle

    Air Intake System:

    Turbo, Air/Air Cooling

    Fuel System:

    PB/W type fuel pump

    Cylinder Arrangement:

    6 in line

    Displacement:

    8.3L

    Bore and Stroke:

    114*135(mm)

    Compression Ratio:

    16.0:1

    Rated RPM:

    1500rpm

    Max. Standby Power at Rated RPM:

    203KW/276HP

    Governor Type:

    Electronic

    Exhaust System

    Exhaust Gas Flow:

    29.1m3/min

    Exhaust Temperature:

    545℃

    Max Back Pressure:

    10.kPa

    Air Intake System

    Max Intake Restriction:

    6.35kPa

    Burning Capacity:

    11.2m3/min

    Air Flow:

    300m3/min

    Fuel System

    100%( Prime Power) Load:

    205 g/Kw.h

    75%(Prime Power) Load:

    206 g/Kw.h

    50%(Prime Power) Load::

    211 g/Kw.h

    100%( Prime Power) Load:

    41.4L/h


    Oil System

    Total Oil Capacity:

    24L

    Oil Consumption:

    ≤4g/kwh

    Engine Oil Tank Capacity:

    18.9L

    Oil Pressure at Rated RPM:

    276-414kPa

    Cooling System

    Total Coolant Capacity:

    40L

    Thermostat:

    83-95℃

    Max Water Temperature:

    104℃


    Alternator SpecifiCAT-parts-partsion

    GENERAL DATA


    Compliance with GB755, BS5000, VDE0530, NEMAMG1-22, IED34-1, CSA22.2 and AS1359 standards.


    Alternator Data


    Number of Phase:

    3

    Connecting Type:

    3 Phase and 4 Wires, “Y” type connecting

    Number of Bearing:

    1

    Power Factor:

    0.8

    Protection Grade:

    IP23

    Altitude:

    ≤1000m

    Exciter Type:

    Brushless, self-exciting

    Insulation Class, Temperature Rise:

    H/H

    Telephone Influence Factor (TIF):

    <50

    THF:

    <2%

    Voltage Regulation, Steady State:

    ≤±1%

    Alternator Capacity:

    200KVA

    Alternator Efficiencies:

    93.3%

    Air Cooling Flow:

    0.514m3/s


    Generating set data:


    Voltage Regulation:

    ≥±5%

    Voltage Regulation, Stead State:

    ≤±1%

    Sudden Voltage Warp (100% Sudden Reduce):

    ≤+25%

    Sudden Voltage Warp (Sudden Increase):

    ≤-20%

    Voltage Stable Time (100% Sudden Reduce):

    ≤6S

    Voltage Stable Time (Sudden Increase)

    ≤6S

    Frequency Regulation, Stead State:

    ≤5%

    Frequency Waving:

    ≤0.5%

    Sudden Frequency Warp (100% Sudden Reduce):

    ≤+12%

    Sudden Frequency Warp (Sudden Increase):

    ≤-10%

    Frequency Recovery Time (100% Sudden Reduce):

    ≤5S

    Frequency Recovery Time (Sudden Increase):

    ≤5S


    Options

    Competitive Advantage:


    High Performance of loading Easy start
    Nice protection User-friendly operation
    Low running cost Environmental Long service life
