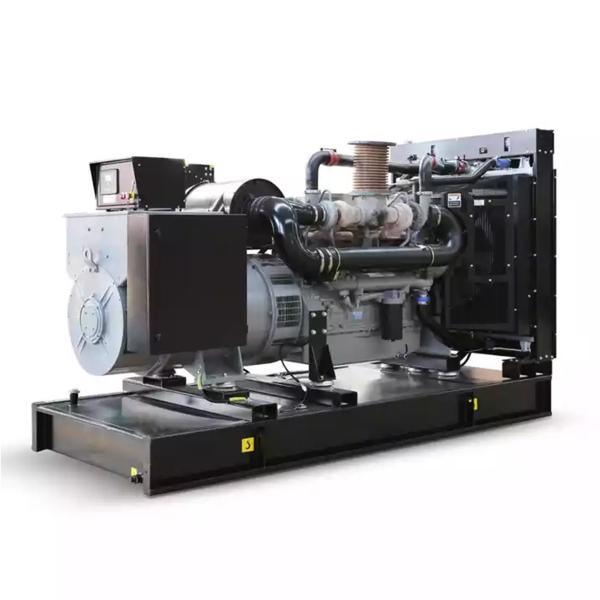

1800RPM Lovol Generator , Turbocharged , 1006TG1A , 6 Cylinder

    Buy cheap 1800RPM Lovol Generator , Turbocharged , 1006TG1A , 6 Cylinder from wholesalers

    Buy cheap 1800RPM Lovol Generator , Turbocharged , 1006TG1A , 6 Cylinder from wholesalers
    • Buy cheap 1800RPM Lovol Generator , Turbocharged , 1006TG1A , 6 Cylinder from wholesalers
    • Buy cheap 1800RPM Lovol Generator , Turbocharged , 1006TG1A , 6 Cylinder from wholesalers
    • Buy cheap 1800RPM Lovol Generator , Turbocharged , 1006TG1A , 6 Cylinder from wholesalers

    1800RPM Lovol Generator , Turbocharged , 1006TG1A , 6 Cylinder

    Ask Lasest Price
    Brand Name : GSKA
    Model Number : 1006TG1A
    Price : Negotiable
    Delivery Time : 30 days
    Payment Terms : T/T L/C, 30% deposit,70% before delivery
    Supply Ability : 100 units/ Per month
    • Product Details
    • Company Profile

    1800RPM Lovol Generator , Turbocharged , 1006TG1A , 6 Cylinder

    1800RPM Lovol Generator , Turbocharged Generator , 1006TG1A


    Direction of Development:


    The generator set shoulders the heavy responsibility of providing complete sets of power generation equipment for the national economy and people's life, so it will occupy a very important position in a long time. With the development of the progressive society of The Times, the original kind of generator set is bulky, high oil consumption, loud noise, serious exhaust pollution, obviously no longer suitable for the needs of the society. Therefore, the development direction of the future generator set should be energy saving, environmental protection, light, small, beautiful and generous. Only in this way can the potential advantages of the generator set be brought into play.


    Cutting edge appliCAT-parts-partsions:


    Coordinated control of battery energy storage and diesel generator in independent AC microgrid


    In the independent AC microgrid system, the coordination control between the diesel generator and the battery energy storage is the key to ensure the stable operation of the system. Based on the fast response characteristic of battery energy storage, a coordinated control method of diesel generator and energy storage battery was proposed. When the diesel generator is used as the main power supply, the auxiliary power control signal is introduced into the traditional droop control of the energy storage system to prevent the system collapse caused by the diesel engine overcurrent for a long time and improve the system stability. Aiming at the short-time power outage problem when the main power supply in the microgrid changes from the energy storage system to the diesel generator or from the diesel generator to the energy storage system, a seamless switching control strategy of the two main power supplies of the diesel generator and the energy storage battery is proposed.


    SpecifiCAT-parts-partsions :


    Prime power(Kw)1500rpm

    84.3

    Standby power(Kw)1500rpm

    92.7

    Prime power(Kw)1800rpm

    97.6

    Standby power(Kw)1800rpm

    107.3

    Overall dimensions
    L*W*H(mm)

    1484*740*1107

    Dry weight(Kg):

    710kg

    Model

    1006TG1A

    Main parameters:

    Prime power(Kw)1500rpm

    84.3

    Standby power(Kw)1500rpm

    92.7

    Prime power(Kw)1800rpm

    97.6

    Standby power(Kw)1800rpm

    107.3

    Cylinder number

    6

    Cylinder arrangement

    In line

    Bore * stoke(mm)

    100*127

    Displacement(L)

    5.99

    Aspiration:

    Turbocharged

    Cycle:

    4-stroke

    Combustion system:

    Direct injection

    Compression ratio:

    17.5:1

    Total lubriCAT-parts-partsion capacity(L):

    16.1

    Total coolant capacity:
    (inc. radiator) (L)

    29.5

    Overall dimensions
    L*W*H(mm)

    1484*740*1107

    Dry weight(Kg):

    710kg

    COMPARATION
    PERKINSLOVOL
    ModelPower(kW)ModelPower(kW)
    50HZ/1500RPM1103A-33G281003G28
    1103A-33TG1421003TG44
    1103A-33TG253.81004TG1A52
    1104A-44TG158.41004TG65.7
    1006TG1A831006TG1A84.3
    1006TG2A911006TG2A92.3
    1006TAG1211006TAG121
    60HZ/1800RPM1103A-33G32.21003G30
    1103A-33TG148.81003TG50
    1103A-33TG261.21004TG1A58
    1104A-44TG168.61004TG75.6
    1006TG1A96.51006TG1A97.6
    1006TG2A1071006TG2A108.4
    1006TAG1341006TAG134


    Customer Support Services:


    Ø Installation


    Ø Training (Training customer employees)


    Ø Calibration


    Ø Preventative maintenance


    Ø Replacement parts


    Ø Assistance via phone or internet
