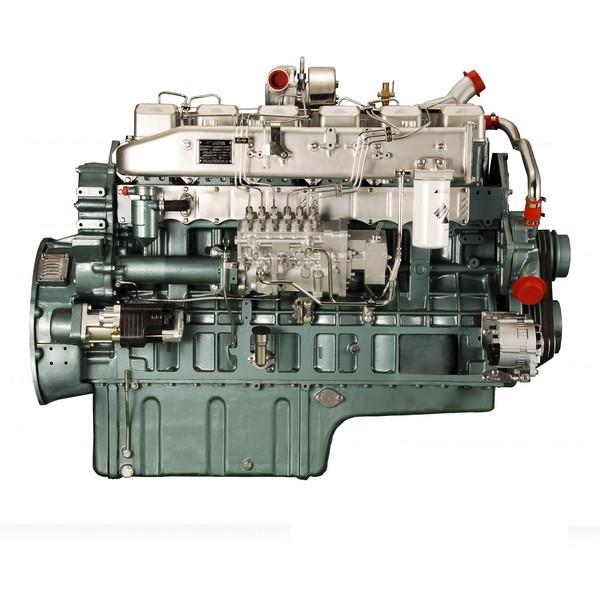

    6 Cylinder Water Cooled Marine Diesel Engines For Generator Low Emission

    Ask Lasest Price
    Brand Name : GSKA
    Model Number : YC6T600L
    Price : Negotiable
    Delivery Time : 5-6 weeks on receipt of official sales contract
    Payment Terms : L/C,D/P,D/A, Alipay, West Union, TT. Cash,Paypal
    Supply Ability : 5sets per Month.
    • Product Details
    • Company Profile

    6 Cylinder Water Cooled Marine Diesel Engines For Generator Low Emission


    6 Cylinder Water Cooled Marine Diesel Engines For Generator Low Emission


    Technical Data Sheet



    Solid forged steel crankshaft, cylinder and cylinder head made from alloy cast iron, sliding bearing, small bulk, light weight, less vibration, low noise, high reliability

    P-type high pressure pump, multiinjector, low fuel consumption,

    Oil seal of valve added, Seal technology for piston ring and valve oil-sealing technique, low fuel and oil consumption.

    Optional electronic speed governing pump, stable operation

    Low emission, low noise, environment friendly

    Perfect G-drive for 360-400KW generator sets


    Technical Data Sheet


    No.

    Name

    Technical Data

    T9600

    1

    Model

    YC6T600L

    2

    Type

    Vertical, in-line, water-cooled, four stroke

    3

    Intake way

    Turbo charging& inter-cooled

    4

    Combustion chamber type

    Direct injection, ω-shape port combustion chamber

    5

    No. of cylinder

    6

    6

    Cylinder diameter mm

    145

    7

    Piston stroke mm

    165

    8

    Displacement of piston L

    16.35

    9

    Compression ratio

    15:1

    10

    Cylinder type

    Wet type

    11

    Net weight of engine kg

    1980

    12

    Overall dimension(length×width×height) mm

    1836×1060×1600

    13

    LubriCAT-parts-partsion way

    Pressure and splash

    14

    Starting way

    Electric start

    15

    Oil capacity L

    64

    16

    Ignition order

    1—5—3—6—2—4

    17

    Crankshaft rotating direction(facing power output end)

    Counter clock

    18

    Rated power kW

    441

    19

    Speed at rated power r/min

    1500

    20

    Fuel consumption at rated working condition g/(kW·h)

    ≤225

    21

    Oil consumption g/(kW·h)

    ≤1.5

    22

    Min. steady rotating speed at free load r/min

    700~750

    23

    Fuel brand

    Summer: No. 0, 10 light fuel of GB 252-2000 superior or first class product

    Winter: No. 0, -10, -20, -35 light fuel of GB252-2000 superior or first class product(according to ambient temperature)

    24

    Oil brand

    Summer: 40CD,15W/40CD

    Winter: 30CD,10W/30CD or other oil not lower than CD class of GB 11122-2006 and adapted to the environment.

    25

    Steady speed adjusting ratio %

    (Mechanical regulating):≤5 (Electronic regulating ):≤3

    26

    Transient speed adjusting ratio %

    (Mechanical regulating):≤+12 (Electronic regulating ):≤+10

    27

    Steady time s

    (Mechanical regulating)≤5 (Electronic regulating )≤3

    28

    Coefficient of speed fluctuation %

    (Mechanical regulating):≤1.5 (Electronic regulating ):≤0.5

    29

    Max. allowed intake resistance kPa

    5

    30

    Max. allowed exhaust back pressure kPa

    10

    31

    Advance angle of fuel supply(crankshaft turn angle before TDC) °CA

    16±1

    32

    Exhaust smoke degree on full load FSN

    ≤3.0

    33

    Noise limit dB(A)

    ≤119

    34

    Note: 1. Overall dimension would vary from configuration.

    2. It is allowed to increase load by four steps when testing the transient speed adjusting ratio of turbo charging model.
