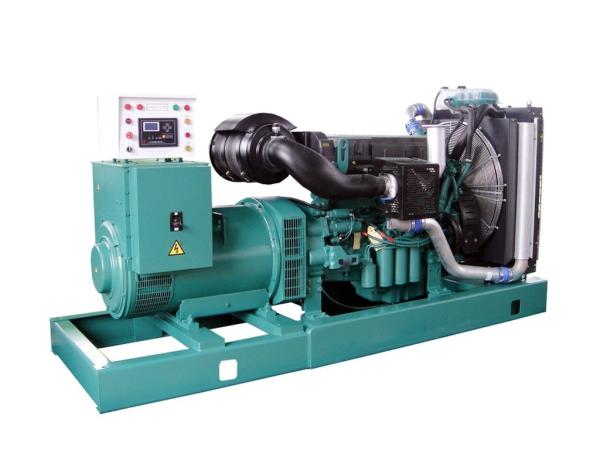

6 Cylinder Electrical Volvo Diesel Generator , 182 kW 60 Hz

    Buy cheap 6 Cylinder Electrical Volvo Diesel Generator , 182 kW 60 Hz from wholesalers

    Buy cheap 6 Cylinder Electrical Volvo Diesel Generator , 182 kW 60 Hz from wholesalers
    • Buy cheap 6 Cylinder Electrical Volvo Diesel Generator , 182 kW 60 Hz from wholesalers
    • Buy cheap 6 Cylinder Electrical Volvo Diesel Generator , 182 kW 60 Hz from wholesalers

    6 Cylinder Electrical Volvo Diesel Generator , 182 kW 60 Hz

    Ask Lasest Price
    Brand Name : GSKA
    Model Number : JP-V200
    Price : Negotiable
    Delivery Time : 5-6 weeks on receipt of official sales contract
    Payment Terms : L/C,D/P,D/A, Alipay, West Union, TT. Cash,Paypal
    Supply Ability : 20sets per Month.
    • Product Details
    • Company Profile

    6 Cylinder Electrical Volvo Diesel Generator , 182 kW 60 Hz

    1. Standby power:200 kW
    2. Prime power:182 kW
    3. Rated speed:1800 RPM
    4. Phase:3
    5. Rated voltage:480 V

    6 Cylinder Electrical Volvo Diesel Generator , 182 kW 60 Hz


    Genset Technical Data( JP-V200)

    Standby power

    200 kW

    Prime power

    182 kW

    Rated speed

    1800 RPM

    Output frequency

    60 Hz

    Phase

    3

    Rated voltage

    480 V

    Noise dB(A) @7m

    75

    Engine model

    TAD733GE

    Alternator model

    ECO38-2SN

    Fuel consumption of 100% load

    52.8 Litres/h

    Fuel consumption of 75% load

    39.6 Litres/h

    Voltage regulation rate

    ≤±1%

    Random voltage variation

    ≤±1%

    Frequency regulation rate

    ≤±5%

    Random frequency variation

    ≤±0.5%


    EngineSpecifiCAT-parts-partsions

    Engine model

    TAD733GE

    Engine manufacturer

    Volvo

    Number of cylinders

    6

    Cylinder arrangement

    Vertical in-line

    Cycle

    Four stroke

    Aspiration

    Turbocharged

    Bore×Stroke (mm×mm)

    108 x 130

    Displacement (Liter)

    7.15

    Compression Ratio

    18:1

    Prime power/speed (kW/RPM)

    195/1800

    Standby power/speed (kW/RPM)

    218/1800

    Speed governor

    Electrical

    Cooling system

    Forced Water Cooling Cycle

    Steady speed droop (%)

    ≤1%

    Total lubriCAT-parts-partsion system capacity (L)

    34

    Coolant capacity (engine only) (L)

    37.1

    Fuel consumption at 100% load (g/kWh)

    222(at 1800RPM)

    Starter motor

    DC12V,

    Alternator

    AC12V


    AlternatorSpecifiCAT-parts-partsions


    Alternator model

    ECO38-2SN

    Alternator manufacturer

    MECC

    Exciter type

    Single bearing, Brushless, Self-excited

    Rated output prime power

    192kW

    Rated speed

    1800 RPM

    Rated frequency

    60 Hz

    Phase

    3

    Rated voltage

    480 V(Available with customer requirements)

    Power factor

    0.8

    Voltage adjust range

    ≥5%

    Voltage regulation NL-FL

    ≤±1%

    Insulation grade

    H

    Protection grade

    IP23


    Control System DSE3110


    All MPMC gensets have a control cubicle (the Deepsea control module DSE3110 as standard) mounted on a isolated support, which has the following features.

    1.Electronic digital control module with monitoring/control facility and warning indiCAT-parts-partsors

    2.Automatic shutdown protection

    3.Emergency stop button (lock-down type)

    4.AC output circuit breaker with over-current protection

    5.DC circuit control switch
