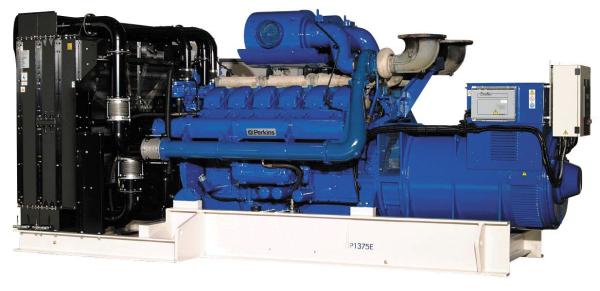

1000kW Perkins Diesel Generator , 1500RPM , Electronic , 1250kVA

    Buy cheap 1000kW Perkins Diesel Generator , 1500RPM , Electronic , 1250kVA from wholesalers

    Buy cheap 1000kW Perkins Diesel Generator , 1500RPM , Electronic , 1250kVA from wholesalers
    • Buy cheap 1000kW Perkins Diesel Generator , 1500RPM , Electronic , 1250kVA from wholesalers
    • Buy cheap 1000kW Perkins Diesel Generator , 1500RPM , Electronic , 1250kVA from wholesalers

    1000kW Perkins Diesel Generator , 1500RPM , Electronic , 1250kVA

    Ask Lasest Price
    Brand Name : GSKA
    Model Number : JP-P1375E1
    Price : Negotiable
    Delivery Time : 3-5 days on receipt of official sales contract
    Payment Terms : L/C,D/P,D/A, Alipay, West Union, TT. Cash,Paypal
    Supply Ability : 500 pieces per Month
    • Product Details
    • Company Profile

    1000kW Perkins Diesel Generator , 1500RPM , Electronic , 1250kVA


    1, Engine Make & Model: Perkins 4012TWG2

    2,Generating Set Model: P1375E1

    3,Alternator Model: LL8124L

    4, Circuit Breaker Type: 3 Pole ACB

    5, Frequency: 50 Hz / 60 Hz

    6,Cycle: 4 Stroke

    7, Engine Speed: 1500rpm

    8, Cooling Method: Turbo, Water/Air cooling

    9, Governing Type: Electronic

    10, Output Type: AC Three Phase

    10, No.of Cylinders/Alignment: 8 / In Line

    11,Base Frame Type:Heavy Duty FabriCAT-parts-partsed Steel


    1000kW 1500RPM Perkins Diesel Generator , P1375E1

    Output Ratings

    Generating Set Model

    * P1375E1

    Prime* Standby*

    380-415V, 50 Hz

    1250.0 kVA 1375.0 kVA

    1000.0 kW 1100.0 kW

    220/127V, 60 Hz

    - -

    - -

    • Refer to ratings definitions on page 4.

    Ratings at 0.8 power factor.

    Technical Data


    Engine Make & Model:


    Perkins 4012TWG2


    Alternator Model:


    LL8124L


    Base Frame Type:


    Heavy Duty FabriCAT-parts-partsed Steel


    Circuit Breaker Type:


    3 Pole ACB


    Frequency:


    50 Hz 60 Hz


    Engine Speed: RPM


    1500 -


    Fuel Tank Capacity: litres (US gal)


    -


    Fuel Consumption: P1250P1 l/hr (US gal/hr)


    264.3 (69.8) -


    Fuel Consumption: P1375E1 l/hr (US gal/hr)


    292.1 (77.2) -

    P1250P1 / P1375E1


    Engine Technical Data

    Physical Data Air System 50 Hz 60 Hz


    Manufacturer: Perkins

    Model: 4012TWG2

    No. of Cylinders/Alignment: 12 / Vee

    Cycle: 4 Stroke

    Induction: Turbocharged

    Cooling Method: Water Governing Type: Electronic Governing

    Class: ISO 8528 G2

    Compression Ratio: 13.6:1

    Displacement: l (cu.in) 45.8 (2797.5) Bore/Stroke: mm (in) 160.0 (6.3)/190.0 (7.5) Moment of Inertia: kg m² (lb. in²) 19.30 (65951)

    Engine Electrical System:

    -Voltage/Ground: 24/Negative

    -Battery Charger Amps: 40

    Weight: kg (lb) - Dry: 4440 (9788)

    - Wet: 4604 (10150)


    Air Filter Type: Replaceable Element Combustion

    Air Flow:

    m³/min (cfm) -Standby: 97.0 (3426) -

    -Prime: 91.0 (3214)

    - Max. Combustion Air Intake

    Restriction: kPa (in H2O) 3.7 (14.9)

    - Radiator Cooling Air Flow:

    m³/min (cfm) 1106.0 (39058)

    - External Restriction to

    Cooling Air Flow: Pa (in H2O) 250 (1.0) -

    Cooling System 50 Hz 60 Hz


    Cooling System Capacity:

    l (US gal) 206.0 (54.4) - Water Pump Type: Centrifugal Heat Rejected to Water &

    Lube Oil: kW (Btu/min)


    -Standby: 467.0 (26558) -

    -Prime: 410.0 (23316) -

    Heat Radiation to Room:

    kW (Btu/min) -Standby: 165.0 (9383) -

    -Prime: 148.0 (8417)

    - Radiator Fan Load: kW (hp) 45.0 (60.4) -

    Cooling system designed to operate in ambient conditions up to 50°C (122°F).


    Performance 50 Hz 60 Hz

    Engine Speed: RPM 1500

    - Gross Engine Power: kW (hp)

    -Standby: 1182.0 (1585.0) -

    -Prime: 1094.0 (1467.0)

    - BMEP: kPa (psi)

    -Standby: 2063.0 (299.2) -

    -Prime: 1909.0 (276.9)

    - Regenerative Power: kW 120.0 -

    LubriCAT-parts-partsion System


    Oil Filter Type: Spin-On, Full Flow

    Total Oil Capacity l (US gal): 173.0 (45.7)

    Oil Pan l (US gal): 159.0 (42.0)

    Oil Type: API CG4 15W-40

    Cooling Method: Water

    Fuel System


    Fuel Filter Type: Replaceable Element Recommended Fuel: Class A2 Diesel

    Fuel Consumption: l/hr (US gal/hr)


    110% 100% 75% 50% Load Load Load Load

    P1250P1


    50 Hz 292.1 (77.2) 264.3 (69.8) 199.3 (52.6) 140.3 (37.1)

    60 Hz - - - -


    P1375E1


    50 Hz 292.1 (77.2) 218.2 (57.6) 151.4 (40.0)

    60 Hz - - -


    (based on diesel fuel with a specific gravity of 0.85 and conforming to BS2869, Class A2)

    Exhaust System 50 Hz 60 Hz


    Silencer Type: Level 1

    Silencer Model & Qty: SD300 (1) Pressure Drop Across

    Silencer System: kPa (in Hg) 0.30 (0.089)

    - Silencer Noise Reduction

    Level: dB 25 - Max. Allowable Back

    Pressure: kPa (in. Hg) 9.3 (2.7) - Exhaust Gas Flow:

    m³/min (cfm) -Standby: 245.0 (8652) -

    -Prime: 245.0 (8652)

    - Exhaust Gas Temperature: °C (°F)

    m³/min (cfm) -Standby: 460 (860) -

    -Prime: 460 (860)

    P1250P1 / P1375E1


    Alternator Performance Data


    Data Item

    50 Hz

    415/240V

    400/230V

    380/220V


    Motor Starting Capability* kVA


    3319


    3093


    2803


    Short Circuit Capacity** %


    300


    300


    300


    Reactances: Per Unit


    Xd X'd X''d


    3.290


    0.230


    0.128


    3.540


    0.250


    0.138


    3.920


    0.280


    0.153


    Reactances shown are applicable to prime ratings

    • Based on 30% voltage dip. Improved motor starting capability is available with optional Permanent Magnet generator or AREP excitation.

    ** With optional Permanent Magnet generator or AREP excitation.


    Alternator Technical Data

    Physical Data Operating Data


    Manufacturer: FG WILSON


    Overspeed: RPM 2250


    Model: LL8124L


    Voltage Regulation (steady state) (%): + /- 0.5


    No. of Bearings: 1


    Wave Form NEMA = TIF: 50


    Insulation Class: H


    Wave Form IEC = THF: 2.0%


    Winding Pitch Code: 2/3 - 6S


    Total Harmonic Content LL/LN: 3.5%


    Wires: 6

    Supression is in line with European Standard

    Radio Interference: EN61000-6


    Ingress Protection Rating: IP23


    Radiant Heat: kW (Btu/min)


    -50 Hz: 55.5 (3156)


    -60 Hz: -


    Excitation System: AREP


    AVR Model: R449

    P1250P1 / P1375E1


    Technical Data

    3 Phase Ratings and Performance at 50 Hz, 1500 RPM

    3 Phase Ratings and Performance at 60 Hz- RPM



    Voltage Prime Model Standby Model Voltage Prime Model Standby Model

    P1250P1 P1375E1 - -


    kVA kW

    kVA kW


    kVA kW

    kVA kW

    415/240V

    1250.0 1000.0

    1375.0 1100.0




    400/230V

    1250.0 1000.0

    1375.0 1100.0




    380/220V

    1250.0 1000.0

    1375.0 1100.0




    Definitions


    Standby Rating

    These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3).


    Prime Rating

    These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.


    Standard Reference Conditions

    Note: Standard reference conditions 27°C (80°F) Air Inlet Temp, 152.4m (500ft) A.S.L. 60% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.


    Weights and Dimensions

    General Data


    Documents

    A full set of operation and maintenance manuals, circuit wiring diagrams, and commissioning/fault finding instruction leaflets.


    Generating Set Standards

    The equipment meets the following standards: BS5000, ISO 8528, ISO 3046, IEC 60034, VDE 0530, NEMA MG-1.22.


    Warranty

    All equipment carries full manufacturer's warranty.
