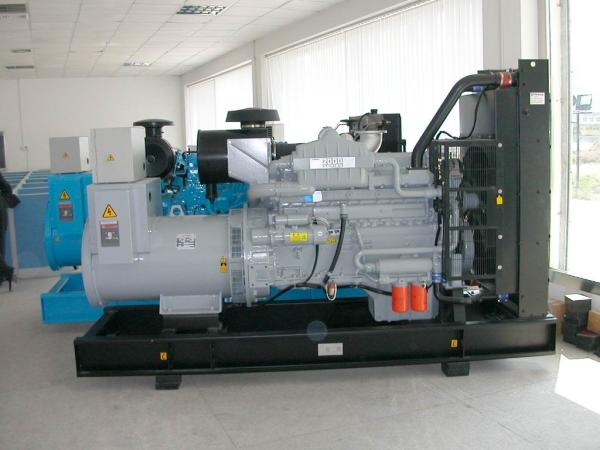

    60Hz Perkins Diesel Generator , 3 Pole ACB , P2200E , Three Phase

    Ask Lasest Price
    Brand Name : GSKA
    Model Number : JP-P2200E
    Price : Negotiable
    Delivery Time : 3-5 days on receipt of official sales contract
    Payment Terms : L/C,D/P,D/A, Alipay, West Union, TT. Cash,Paypal
    Supply Ability : 500 pieces per Month
    • Product Details
    • Company Profile

    60Hz Perkins Diesel Generator , 3 Pole ACB , P2200E , Three Phase


    1, Engine Make & Model:Perkins 4016TAG2A

    2,Generating Set Model: P2200E

    3,Alternator Model:LL9124H

    4, Circuit Breaker Type: 3 Pole ACB

    5, Frequency: 50 Hz / 60 Hz

    6,Cycle: 4 Stroke

    7, Engine Speed: 1500rpm

    8, Cooling Method: Turbo, Water/Air cooling

    9, Governing Type: Electronic

    10, Output Type: AC Three Phase

    10, No.of Cylinders/Alignment: 16 / Vee

    11,Base Frame Type: Heavy Duty FabriCAT-parts-partsed Steel


    P2200E Perkins Diesel Generator , 3 Pole ACB


    Output Ratings

    Generating Set Model

    *P2200E Prime* Standby*

    380-415V, 50 Hz

    2000.0 kVA 2200.0 kVA

    1600.0 kW 1760.0 kW

    220/127V, 60 Hz


    - -

    - -

    • Refer to ratings definitions on page 4.

    Ratings at 0.8 power factor.

    Technical Data

    Engine Make & Model:

    Perkins 4016TAG2A

    Alternator Model:

    LL9124H

    Base Frame Type:

    Heavy Duty FabriCAT-parts-partsed Steel

    Circuit Breaker Type:

    3 Pole ACB

    Frequency:

    50 Hz 60 Hz

    Engine Speed: RPM

    1500 -

    Fuel Tank Capacity: litres (US gal)

    -

    Fuel Consumption: P2000 l/hr (US gal/hr)

    423.5 (111.9) -

    Fuel Consumption: P2200E l/hr (US gal/hr)

    474.1 (125.2) -

    P2000 / P2200E


    Engine Technical Data


    Physical Data Air System 50 Hz 60 Hz


    Manufacturer: Perkins

    Model: 4016TAG2A

    No. of Cylinders/Alignment: 16 / Vee

    Cycle: 4 Stroke

    Induction: Turbocharged Air To Air Charge Cooled


    Cooling Method: Water Governing

    Type: Electronic Governing

    Class: ISO 8528 G2

    Compression Ratio: 13.6:1

    Displacement: l (cu.in) 61.1 (3730.0) Bore/Stroke: mm (in) 160.0 (6.3)/190.0 (7.5) Moment of Inertia: kg m² (lb. in²) 20.72 (70803)

    Engine Electrical System:

    -Voltage/Ground: 24/Negative

    -Battery Charger Amps: 40

    Weight: kg (lb) - Dry: 5570 (12280)

    - Wet: 5847 (12890)


    Air Filter Type: Replaceable Element Combustion

    Air Flow:

    m³/min (cfm)

    -Standby: 145.0 (5121) -

    -Prime: 137.0 (4838)

    - Max. Combustion Air Intake

    Restriction: kPa (in H2O) 3.7 (14.9)

    - Radiator Cooling Air Flow:

    m³/min (cfm) 2058.0 (72678)

    - External Restriction to

    Cooling Air Flow: Pa (in H2O) 250 (1.0) -

    Cooling System 50 Hz 60 Hz


    Cooling System Capacity:l (US gal) 355.0 (93.8)

    - Water Pump Type: Centrifugal Heat Rejected to Water &

    Lube Oil: kW (Btu/min)


    -Standby: 721.0 (41003) -

    -Prime: 660.0 (37534)

    - Heat Radiation to Room:

    kW (Btu/min) -Standby: 231.0 (13137) -

    -Prime: 200.0 (11374)

    - Radiator Fan Load: kW (hp) 63.5 (85.2) -

    Cooling system designed to operate in ambient conditions up to 50°C (122°F).

    Performance 50 Hz 60 Hz

    Engine Speed: RPM 1500 - Gross Engine Power: kW (hp)

    -Standby: 1937.0 (2597.6) -

    -Prime: 1766.0 (2368.2) - BMEP: kPa (psi)

    -Standby: 2535.2 (367.7) -

    -Prime: 2311.1 (335.2) - Regenerative Power: kW 160.0 -

    LubriCAT-parts-partsion System


    Oil Filter Type: Spin-On, Full Flow

    Total Oil Capacity l (US gal): 238.0 (62.9)

    Oil Pan l (US gal): 214.0 (56.5)

    Oil Type: API CG4 15W-40

    Cooling Method: Water

    Fuel System


    Fuel Filter Type: Replaceable Element Recommended

    Fuel: Class A2 Diesel

    Fuel Consumption: l/hr (US gal/hr)


    110% 100% 75% 50% Load Load Load Load

    P2000


    50 Hz 474.1 (125.2) 423.5 (111.9) 312.9 (82.7) 212.9 (56.2)

    60 Hz - - - -


    P2200E


    50 Hz 474.1 (125.2) 344.9 (91.1) 232.1 (61.3)

    60 Hz - - -


    (based on diesel fuel with a specific gravity of 0.85 and conforming to BS2869, Class A2)

    Exhaust 50 Hz 60 Hz


    Silencer Type: Level 1

    Silencer Model & Qty: SD350 (1)

    Pressure Drop Across

    Silencer System: kPa (in Hg) 0.50 (0.148)

    - Silencer Noise Reduction

    Level: dB 17

    - Max. Allowable Back

    Pressure: kPa (in. Hg) 6.6 (1.9)

    - Exhaust Gas Flow:

    m³/min (cfm)

    -Standby: 387.0 (13667) -

    -Prime: 387.0 (13667) - Exhaust Gas Temperature: °C (°F)

    m³/min (cfm)

    -Standby: 493 (919) -

    -Prime: 493 (919)

    P2000 / P2200E

    Alternator Performance Data


    Data Item

    50 Hz 60 Hz

    415/240V

    400/230V

    380/220V


    Motor Starting Capability* kVA


    6986


    6509


    5897


    Short Circuit Capacity** %


    300


    300


    300


    Reactances: Per Unit


    Xd X'd X''d


    3.230


    0.240


    0.126


    3.480


    0.260


    0.136


    3.850


    0.290


    0.151

    Reactances shown are applicable to prime ratings

    • Based on 30% voltage dip. Improved motor starting capability is available with optional Permanent Magnet generator or AREP excitation.

    ** With optional Permanent Magnet generator or AREP excitation.


    Alternator Technical Data


    Physical Data Operating Data


    Manufacturer: FG WILSON


    Overspeed: RPM 2250


    Model: LL9124H


    Voltage Regulation (steady state) (%): + /- 0.5


    No. of Bearings: 1


    Wave Form NEMA = TIF: 50


    Insulation Class: H


    Wave Form IEC = THF: 2.0%


    Winding Pitch Code: 2/3 - 6S


    Total Harmonic Content LL/LN: 2.5%


    Wires: 6

    Supression is in line with European Standard

    Radio Interference: EN61000-6


    Ingress Protection Rating: IP23


    Radiant Heat: kW (Btu/min)


    -50 Hz: 81.0 (4606)


    -60 Hz: -


    Excitation System: AREP


    AVR Model: R449

    P2000 / P2200E


    Technical Data

    3 Phase Ratings and Performance at 50 Hz, 1500 RPM

    3 Phase Ratings and Performance at 60 Hz- RPM



    Voltage Prime Model Standby Model Voltage Prime Model Standby Model

    P2000 P2200E - -


    kVA kW

    kVA kW


    kVA kW

    kVA kW

    415/240V

    2000.0 1600.0

    2200.0 1760.0




    400/230V

    2000.0 1600.0

    2200.0 1760.0




    380/220V

    2000.0 1600.0

    2200.0 1760.0





    Definitions

    Standby Rating

    These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3).


    Prime Rating

    These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.


    Standard Reference Conditions

    Note: Standard reference conditions 27°C (80°F) Air Inlet Temp, 152.4m (500ft) A.S.L. 60% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.


    Weights and Dimensions


    Weights and Dimensions


    General Data


    Documents

    A full set of operation and maintenance manuals, circuit wiring diagrams, and commissioning/fault finding instruction leaflets.


    Generating Set Standards

    The equipment meets the following standards: BS5000, ISO 8528, ISO 3046, IEC 60034, VDE 0530, NEMA MG-1.22.


    Warranty

    All equipment carries full manufacturer's warranty.
