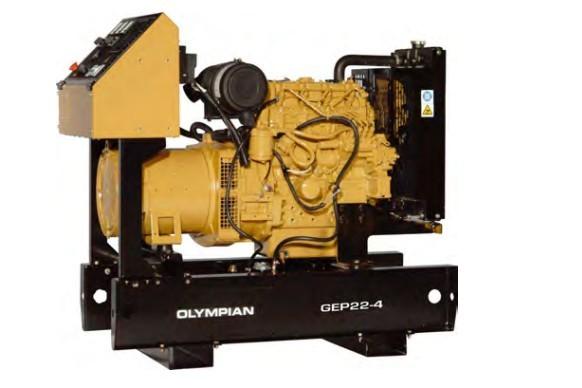

17.6 kw Marine Diesel Generator Engines , LL1014N , GEP22-4 , 4 Stroke

17.6 kw LL1014N CAT-parts-parts Diesel Generator , 404D-22G

FEATURES

Engine Techncial Data

Physical Data

Manufacturer: Perkins

Model: 404D-22G

No.of Cylinders/Alignment: 4/ In Line

Cycle: 4 stroke

Induction: Naturally Aspirated

Cooling Method: Water

Governing Type: Mechanical

Governing Class: ISO 8528 G2

Compression Ratio: 23.3:1

Displacement: I(cu.in) 2.2(135.2)

Bore/Stroke: mm(in) 84.0(3.3)/100.0(3.9)

Moment of Inertia: kg*㎡(Ib.in2) 2.72(9308)

Engine Electrical System:

* Voltage/ Ground: 12/ Negative

* Battery Charger Amps: 65

Weight: kg( Ib)* Dry: 242 (534)

*Wet : 251(554)

LubriCAT-parts-partsion System

Oil Filter Type: Spin-on,Full Flow

Totel Oil Capacity I (US gal): 10.6(2.8)

Oil Pan I (US gal): 8.9(2.4)

Oil Type: API CH4 15W-4O

Cooling Method: N/A

Cooling System 50Hz 60Hz

Cooling System Capacity:I ( us gal) 6.5(1.7) 6.5(1.7)

Water Pump Type: ℃ Centrifugal

Heat Rejected to Water& Lube Oil:

KW(Btu/ min)

*Standby: 21.6(1228) 24.2(1376)

*Prime: 19.6(1115) 22.2(1262)

Heat Radiation to Room:

KW (Btu/ min) *Standby: 4.4(250) 4.6(262)

*Prime: 3.5(199) 3.8(216)

Radiator Fan Load: KW( hp) 0.2(0.3) 0.4(0.5)

Cooling system designed to operate in ambient conditions up to 50℃.

Exhaust System

Silencer Type: Level 1

Silencer Noise Reduction: 263-0765(1)

Max.Allowable Back

Pressure: kPa( in. Hg) 0.70(0.207) 1.60(0.472)

Silencer Noise Reduction

Level:Db 28 21

Max.allowable back

Pressure: kpa( in. Hg) 10.0(3.0) 10.0(3.0)

Exhaust Gas Flow:

m ³/ min(cfm)

* Sandby: 4.5(159) 4.8(168)

* Prime 4.1(145) 4.3(153)

Exhaust Gas Temperature: ℃/℉

m ³/ min(cfm)

* Sandby: 481(898) 510(950)

* Prime: 437(819) 440(824)

Performance 50Hz 60Hz

Engine Speed: RPM 1500 1800

Gross Engine Power: kw (hp)

* Standby: 20.6(28.0) 24.3(33.0)

* Prime: 18.7(25.0) 22.0(30.0)

BMEP: kpa (psi)

* Standby: 743.0(107.8) 647.0(93.8)

* Prime: 675.0(97.9) 662.0(96.0)

Regenerative Power: Kw 5.6 7.2

Air System 50Hz 60Hz

Air Filter Type: Replaceable

Element Combustion Air Flow: m ³/ min(cfm)

*Standby: 1.5(51) 1.7(61)

* Prime 1.5(51) 1.7(61)

Max.Combustion Air Intake

Restriction : kpa ( In H2O) 3.0(12.0) 3.0(12.0)

Radiator Cooling Air Flow:m ³/ min(cfm) 33.0(1165) 41.4(1462)

External Restriction to Cooling Air Flow: Pa(in H2O) 125(0.5)

Fuel System

Fuel Filter Type: Replaceable Element

Recommended Fuel: Class A2 Diesel

Fuel Consumption: L/hr (us gal/hr)

110% 110% 75% 50%

Load Load Load Load

Prime

50Hz 5.9(1.6) 5.3(1.4) 3.9(1.0) 2.9(0.8)

60Hz 6.5(1.7) 5.8(1.5) 4.5(1.2) 3.3(0.9)

Standby

50Hz 5.9(1.6) 4.3(1.1) 3.0(0.8)

60Hz 6.5(1.7) 4.9(1.3) 3.6(1.0)

( based on diesel fuel with a specific gravity of 0.85 and conforming to BS2869,Class A2 )

Alternator Technical Data

Weights & Dimensions
