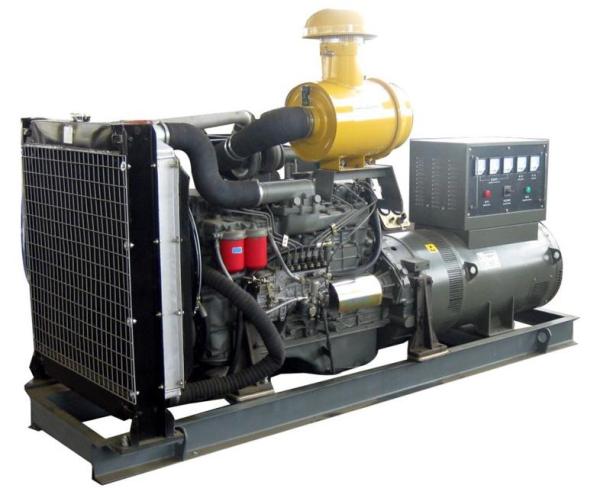

3 Pole MCCB Diesel Generator , Marine Diesel Engines GEP88-1 , 1800 rpm

FEATURES

Engine Techncial Data

Physical Data

Manufacturer: Perkins

Model: 1104A-44TG2

No.of Cylinders/Alignment: 4/ In Line

Cycle: 4 stroke

Induction: Turbocharged

Cooling Method: Water

Governing Type: Mechanical

Governing Class: ISO 8528 G2

Compression Ratio: 17.25:1

Displacement: I(cu.in) 4.4(268.5)

Bore/Stroke: mm(in) 105.0(4.1)/127.0(5.0)

Moment of Inertia: kg*㎡(Ib.in2) 1.14(3896)

Engine Electrical System:

* Voltage/ Ground: 12/ Negative

* Battery Charger Amps: 65

Weight: kg( Ib)

* Dry: 463(1021)

*Wet : 485(1069)

LubriCAT-parts-partsion System

Oil Filter Type: Spin-on,Full Flow

Totel Oil Capacity I (US gal): 8.0(2.1)

Oil Pan I (US gal): 7.0(1.8)

Oil Type: API CG4 15W-4O

Cooling Method: Water

Cooling System 50Hz 60Hz

Cooling System Capacity:I ( us gal) 13.0(3.4) 13.0(3.4)

Water Pump Type: ℃ Centrifugal

Heat Rejected to Water& Lube Oil:

KW(Btu/ min)

*Standby: 50.4(2866) 55.8(3173)

*Prime: 45.9(2610) 51.6(2934)

Heat Radiation to Room:

KW (Btu/ min) *Standby: 20.8(1183) 22.7(1291)

*Prime: 19.0(1081) 20.5(1166)

Radiator Fan Load: KW( hp) 1.0(1.3) 1.7(2.3)

Cooling system designed to operate in ambient conditions up to 50℃.

Exhaust System

Silencer Type: Level 1

Silencer Noise Reduction: SD80(1)

Max.Allowable Back

Pressure: kPa( in. Hg) 1.17(0.345) 1.97(0.581)

Silencer Noise Reduction

Level:Db 16 16

Max.allowable back

Pressure: kpa( in. Hg) 10.0(3.0) 15.0(4.4)

Exhaust Gas Flow:m ³/ min(cfm)

* Sandby: 13.3(470) 15.9(560)

* Prime 12.5(441) 15.0(530)

Exhaust Gas Temperature: ℃/℉

m ³/ min(cfm) * Sandby: 580(1076) 560(1040)

* Prime: 555(1031) 535(995)

Performance 50Hz 60Hz

Engine Speed: RPM 1500 1800

Gross Engine Power: kw (hp)

* Standby: 80.7(108.0) 92.6(124.0)

* Prime: 73.4(98.0) 84.2(113.0)

BMEP: kpa (psi)

* Standby: 1468.0(212.9) 1403.0(203.5)

* Prime: 1335.0(193.6) 1276.0(185.1)

Regenerative Power: Kw 7.0 9.0

Air System 50Hz 60Hz

Air Filter Type: Replaceable Element

Combustion Air Flow:

m ³/ min(cfm) *Standby: 5.1(180) 6.4(226)

* Prime 4.8(170) 6.1(215)

Max.Combustion Air Intake

Restriction : kpa ( In H2O) 8.0(32.1) 8.0(32.1)

Radiator Cooling Air Flow:m ³/ min(cfm) 121.2(4280) 140.4(4958)

External Restriction to Cooling Air Flow: Pa(in H2O) 120(0.5)

Fuel System

Fuel Filter Type: Replaceable Element

Recommended Fuel: Class A2 Diesel

Fuel Consumption: L/hr (us gal/hr)

110% 110% 75% 50%

Load Load Load Load

Prime

50Hz 19.9(5.3) 18.0(4.8) 13.6(3.6) 9.5(2.5)

60Hz 23.7(6.3) 21.3(5.6) 16.2(4.3) 11.6(3.1)

Standby

50Hz 19.9(5.3) 14.9(3.9) 10.3(2.7)

60Hz 23.7(6.3) 17.9(4.7) 12.6(3.3)

( based on diesel fuel with a specific gravity of 0.85 and conforming to BS2869,Class A2 )

Alternator Technical Data

Weights & Dimensions
