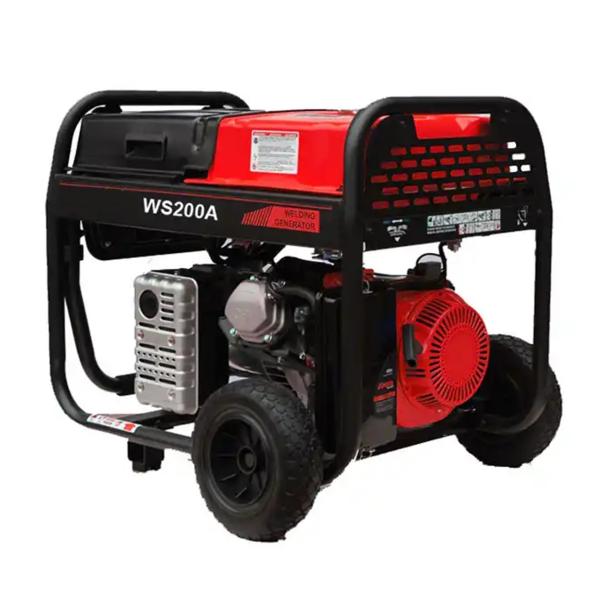

Convenient Welding Machine 200A 5500W Diesel Generator Welding Set

Precursor of burning tile:

Diesel engine work speed suddenly reduced, load increased, the engine black smoke, oil pressure drop, crankcase issued "chirp" dry friction sound, which is the precursor of burning tile. In this case, the engine should be stopped immediately, otherwise it will further increase the wear of the bearing bush, the rapid expansion of the grasping and sticking of the journal surface, the bearing bush and the journal will soon be stuck, and the engine will stall.

Products Description:

	Model	130A	130B	200A	200M
Generator	Rated no-load voltage (V)	220	220	220	220
	Rated power(KW)	2.5	2.5	5	5
	Max. power(KW)	2.8	2.8	5.5	5.5
Welding	Rated Duty Cycle	60%	60%	60%	35%
	OCV(V)	DC 60V	DC 60V	DC 75V	DC75V
	Current range(A)	DC 50-130A	DC 50-130A	DC50-200A	DC50-200A
	Welding voltage(V)	DC 22-25.2V	DC 22-25.2V	DC 22-28V	DC 22-28V
	Welding rod(mm)	1.6-3.2	1.6-3.2mm	1.6-4.0mm	1.6-4.0mm
	Rated current/voltage(A/V)	120A / 24.8V	120A / 24.8V	180A / 27.2V	DC 170A/26.8V
	Auxiliary rated power output	2.5kW	2.5kW	5.0kW	5.0kW
Engine	Engine Model	SV230	SV230	SC420	AP190
	Max.power/Speed(RPM)	5.2KW/3600rpm	5.2KW/3600rpm	9.2kw/3600rpm	9Kw/3600rpm
	Displacement(cc)	223	223	420	420
	Start method	Recoil	Recoil	Recoil/Electric	Recoil/Electric
Whole Set	Fuel Tank capacity(L)	3.6	11	18	25
	Protection class	IP21S	IP21S	IP21S	IP21S
	Machine Dimension(mm)	600*460*460	600*463*538	760*530*615	683*515*557
	Packing Dimension(mm)	610*470*480	620*475*555	780*545*632	695*525*562
	Net weight(KG)	51	57	98	88
