Output Protection UPS Uninterruptible Power Supply Backup Ups Household

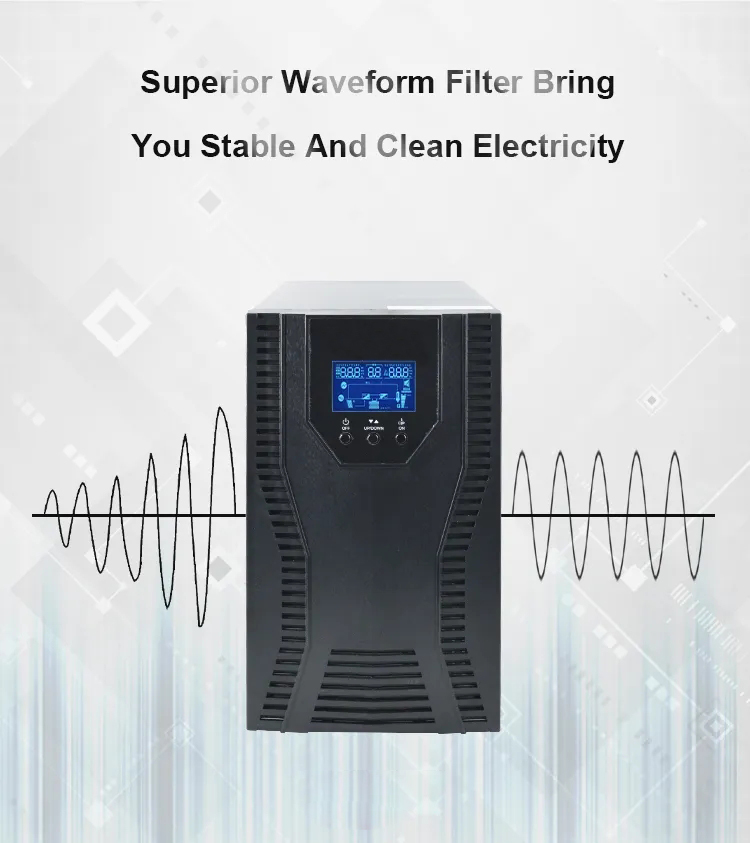

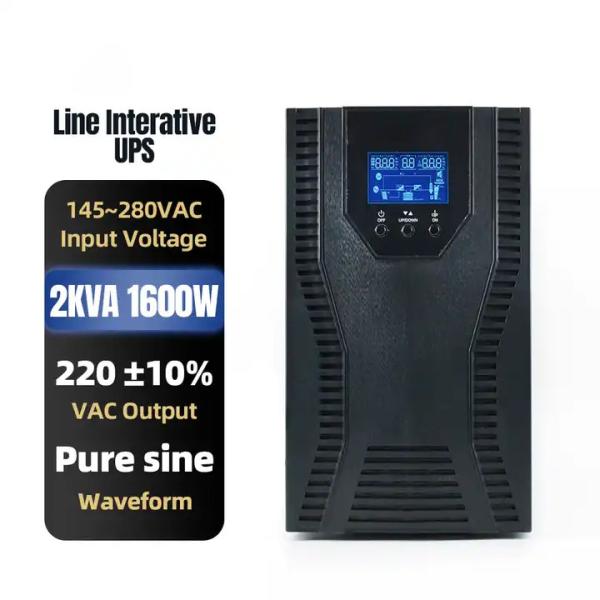

Pure Sine Wave UPS 1~10KVA(S)

* With Toroidal Transformer,Higher Efficiency,Lower Consumption.

Product Parameters:

Model	GS1K(S)	GS2K(S)	GS3K(S)	GS6K(S)	GS10K(S)
Phase	Single-phase
Capacity	1000VA/800W	2000VA/1600W	3000VA/2400W	6000VA/4800W	10000VA/8KW
Input
AC Mains Input Voltage	145-280VAC
Input Frequency Range	50Hz/60Hz
Power Factor	100% load ≥ 0.98
Output
Output Voltage	220 ± 10%
Surge Ratio	3: 1
Harmonic Distortion	≤3% THD(linear load)
Transfer Time	≤8ms
Waveform	Pure sine wave
Battery
Standard Model Battery Type	12V 7AH
Standard Model Battery Quantity	2	4 or 6	6	14	16
Standard Model Charging Current	1.5A(Max)			2.0A(Max)
Long Run Model Battery Type	Depend on requirments
Long Run Model Battery Quantity	3	6	8	16(18, 20 optional)
Long Run Model Charging Current	6A(Adjustable)		8A(Adjustable)	6A(Adjustable)
Appearance
LED Or LCD Display	Load level, battery capacity, AC Mode, battey mode, bypass mode, fault indiCAT-parts-partsion
Environment
Noise(dB)	< 40dB at one meter distance			< 45dB at one meter distance
Control Management	Smart RS-232/USB,Optional SNMP
