    Mahindra Emergency Marine Diesel Generator Special 125kva

    Ask Lasest Price
    Brand Name : GSKA
    Model Number : GSA-5X
    Price : negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 50 Set / Sets per Month
    Delivery Time : 15-20working days after received deposit
    • Product Details
    • Company Profile

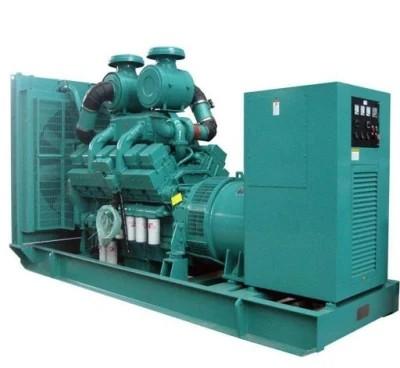

    Mahindra Emergency Marine Diesel Generator Special 125kva

    Mahindra emergency special 125kva Marine diesel generator for sale


    product presentation:


    In recent years, the appliCAT-parts-partsion of diesel generator sets in ships is increasing. In addition to being used as a conventional unit to provide ship electricity, it is also increasingly widely used for electric propulsion. Due to its unique advantages, full or semi-electric propulsion has become the development trend of the propulsion system for ships over thousands of tons, especially for military ships. The diesel engine is mainly used as the prime mover of the ship's generator set. The fuel cooler is very important for the cooling of the diesel engine's diesel oil.


    Marine diesel engine is a type of diesel engine used on ships. It works as follows:


    A stream of fresh air is pumped or pumped into the engine cylinder and then compressed to a very high pressure by a moving piston. When air is compressed, its temperature rises so that it ignites the fine mist of fuel that is sprayed into the cylinder. The burning of fuel adds more heat to the charged air, causing expansion and forcing the generator piston to do work on the crankshaft, which in turn drives the ship's propeller through the other shafts.


    The operation between two fuel injections is called a working cycle. In a four-stroke diesel engine, this cycle needs to be completed by four different strokes of the piston, namely suction, compression, expansion and exhaust. If we combine suction and exhaust with compression and expansion, a four-stroke engine becomes a two-stroke generator.


    Product Description:
    Engine Data
    ModelGSA-5X
    Type6 Cylinder inline,4 cycle
    Displacement3.6 L
    AspirationNatural
    Bore*Stroke100X115 mm
    Governor TypeMechanical
    Starting Voltage24V
    Lubricant Capacity16 L
    Fuel Consumption0.23 L/Kw.h
    Generator Data
    ModelNewtec NTG-224
    OptionalStamford,Leroysomer,MeccAlte,Marathon
    Excited TypeBrushless,Self-Excited
    Power Factor0.8
    Voltage Adjust range>5%
    Voltage Regulation<±1%
    Insulation ClassH
    Protection ClassIP23
    Control Panel
    ModelSmartgen,Comap or Deepsea
    ProtectionHigh/Low Voltage,High/Low Temperaturer,High/Low Frequency,Low fuel,Low Oil,Low coolant
    FunctionAMF,Synchronizing
    SupportRS232,RS485,USB


    FQA:


    Q1: Are you trading company or manufacturer ?


    A1: We are factory.


    Q2:What is the power ranger of your diesel generator ?


    A2: We can provide power from the 10kva-2500kva.


    Q3:What is your warranty ?


    A3:Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.


    Q4:What is your MOQ?


    A4: MOQ is 1 set.


    Q5:Do your offer OEM Service?


    A5:Yes.


    Q6:What is the voltage and frequency of your diesel generator?


    A6:50/60HZ,220/380V,230/400V,240/415V,254/440V,or request voltage.


    Q7:What is your lead time?


    A7:Average 15-20days.
