400KW 500KVA Perkins AC 3 Phase Diesel Generator Tank Fan Cooling

    Buy cheap 400KW 500KVA Perkins AC 3 Phase Diesel Generator Tank Fan Cooling from wholesalers

    Buy cheap 400KW 500KVA Perkins AC 3 Phase Diesel Generator Tank Fan Cooling from wholesalers
    • Buy cheap 400KW 500KVA Perkins AC 3 Phase Diesel Generator Tank Fan Cooling from wholesalers
    • Buy cheap 400KW 500KVA Perkins AC 3 Phase Diesel Generator Tank Fan Cooling from wholesalers

    400KW 500KVA Perkins AC 3 Phase Diesel Generator Tank Fan Cooling

    Ask Lasest Price
    Brand Name : GSKA
    Model Number : GSA-W36
    Price : negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 150 Set / Sets per Month
    Delivery Time : 15-30working days after received deposit
    • Product Details
    • Company Profile

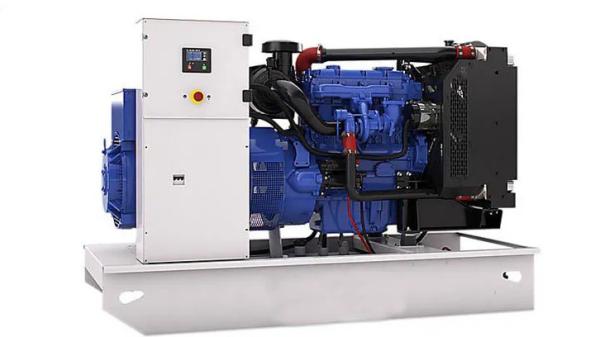

    400KW 500KVA Perkins AC 3 Phase Diesel Generator Tank Fan Cooling

    400KW 500KVA Perkins AC 3 Phase Diesel Generator, Tank Fan Cooling


    product presentation of diesel generator :


    GSA series diesel generator sets adopt imported Perkins engines, and are equipped with famous and excellent generators such as Shanghai Kepu, Siemens, Stanford, etc. The product has a compact structure, small size, light weight, low fuel consumption, and convenient use and maintenance. The following are the features of GSA-W36 diesel generator:


    1. Low noise and high emission standards: Meet the emission standard of 1/2ta luft.


    2. High economy: Adopting four top cylinder valve structures to optimize airflow control, as well as perfect mist injection of fuel injectors, ensuring fast combustion, high efficiency, and economy.


    3. Stability and reliability: Developed and tested using advanced multi-point injection cooling system to control piston temperature, as well as multi-element analysis control to ensure stability, low fuel consumption, and low wear. Perkins diesel engines are widely used in national defense, aviation, vehicles, ships, engineering machinery, and generator sets, and are recognized worldwide for their small size, light weight, strong resistance to sudden load, low noise, and economic reliability.


    PERKINS Technical Parameters(220-550KW)
    Genset
    Model
    GSA-W36
    GSA-W37
    GSA-W38
    GSA-W39
    Rated Power(KW/KVA)
    220/275
    240/300
    280/350
    320/400
    Standby Power(KW/KVA)
    242/303
    264/330
    310/388
    350/438
    Rated Current(A)
    396
    432
    505
    577
    weight(kg)
    2200
    2700
    Size(mm)
    2800*1100*1800
    3150*940*1910
    3150*940*1970
    Diesel
    Engine
    Model
    1606A-E93TAG4
    1506A-E88TAG5
    2206C-E13TAG2
    2206C-E13TAG3
    Manufacturer
    For PERKINS
    Continuous Power(KW)
    220
    224
    280
    320
    Standby Power(KW)
    242
    264
    308
    352
    Number of Cylinders
    6
    Cylinder Diameter*Stroke(mm)
    120*145
    117*136
    130*157
    Cylinder Arrangement
    In-line
    Compression Ratio
    /
    Displacement(L)
    10.6
    8.7
    12..5
    Intake Type
    Exhaust gas turbocharger
    Cooling Type
    Tank fan cooling
    Rated Speed(rpm)
    1500
    Fuel Consumption(g/kwh)
    ≤198
    Discharge Temperature(℃)
    571
    Unpitched Sound(db)
    102
    Speed Regulation
    Electronic Speed Regulation
    Alternator
    Nominal Voltage(V)
    400/230
    Alternator(Optional)
    Wandi, Stamford, Engga, Marathon, Elmaer, Leroy-Somer, etc.
    Rated Capacity(KW/KVA)
    220/275
    240/300
    280/350
    320/400
    Rated Power Factor
    0.8(lag)
    Exciter Type
    Self Excitation Brushless
    Maximum Voltage Adjustment Rate
    ±1%
    Phase
    AC Three Phase
    Control
    Panel
    Control Cabinet Model
    TBZK880
    Controller(Optional)
    SmartGen, Deepsea, Comap
    Rated Capacity of Circuit Breaker(A)
    400A
    630A
    Accumulator
    Rated Capacity(AH)
    2×120AH 12V
    2×150AH 12V



    FQA:


    Q1:What is your MOQ of silent diesel generator? How long is your processing time for MOQ?

    A:1 set. Within TWO working days or 48 hours...

    Q2:Is the diesel generator customized?

    A:Yes. Color, logo and packing can be customized according to customers design.... diesel generator

    Q3:What is your company production capacity?

    A:144 sets each day....

    Q4:What is the delivery time for the diesel generator?

    A:20 days after advance payment.If the items which you purchase is in stock we can send them out immediately....

    Q5:How long is your warranty period for your diesel generator?

    A:1 year or 1000 hours warranty whichever comes first except the wearing and tearing parts.We suggest customers buy some wearing and
    tearing parts in each order....

    Q6:What are your payment terms?

    A:T/T 30% deposit, 70% balance should be paid against the B/L copy.D/P for regular good reputation customers. Paypal is accepted for one set,
    but please discuss to our sales person first....

    Q7:Is it alright to make customer's own brand name on the diesel generator?

    A:Sure, as long as you authorize us to use your brand on your behalf.We have over 10 years OEM/ODM experience....
