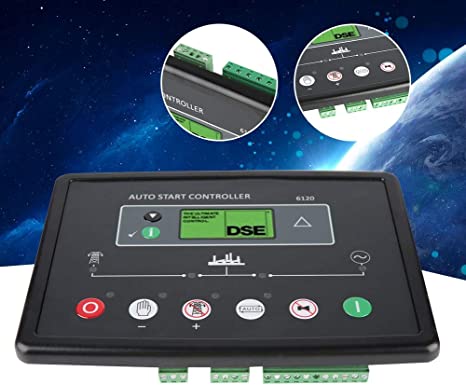

Generator Accessories Deep Sea Control Panel Model DSE6120

product presentation:

Ensures the display continues to operate in extreme cold weather conditions. Configurable DC, volt-free and staged loading outputs (6). Provides full generator load control. CAN, MPU & alternator speed sensing (selectable depending on engine type).

Provides true generator and mains (utility) sensing. Ensures the module can be used with a wide number of engine types. Tier 4 CAN engine support. Ensures the control module can be used with the latest in modern electronic engine technology.

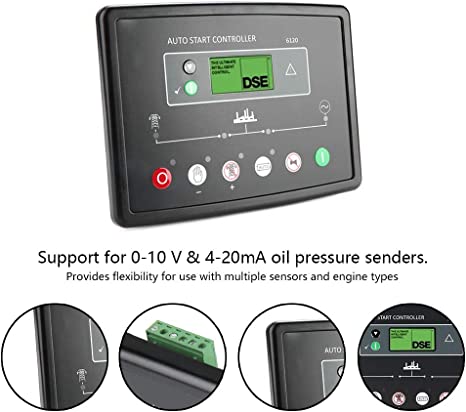

Support for 0-10 V & 4-20mA oil pressure senders. Heated display option. 3-phase generator sensing. Provides true generator sensing. 3-phase mains (utility) monitoring. Generator/load current monitoring & protection.

Provides flexibility for use with multiple sensors and engine types. Provides convenience of monitoring and protection of the generator or monitoring of the load current. Configurable analogue/digital inputs (9). Provides multiple installation options.

Generator/load current monitoring & protection. Configurable event log (100). Provides access to historical alarms and operational status. DSE Configuration Suite PC Software. Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring. Fuel and start outputs (configurable on CAN). Provides multiple installation options.

SpecifiCAT-parts-partsion:

Material: Plastic
Weight: 526g/18.6oz
Model: DSE6120
DC Supply: continuous voltage rating 8 V to 35 V Continuous
Cranking Dropouts: Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
Maximum Operating Current: 100 mA at 12 V, 105 mA at 24 V
Maximum Standby Current: 60 mA at 12 V, 55 mA at 24 V
Maximum Sleep Current:40 mA at 12 V, 35 mA at 24 V
Generator & Mains(Utility):
Voltage Range: 15 V to 415 V AC (Ph to N); 26 V to 719 V AC (Ph to Ph)
Frequency Range: 3.5 Hz to 75 Hz
Inputs: Digital Inputs A to F, negative switching analogue input A
Configurable as:
Negative switching digital input
0 V to 10 V
4 mA to 20 mA
0 Ω to 240 Ω
Analogue Inputs B to D
Configurable as: Negative switching digital input 0 Ω to 480 Ω
Outputs:
Output A (Fuel)
10 A short term, 5 A continuous,
at supply voltage
Output B (Start)
10 A short term, 5 A continuous,
at supply voltage
Auxiliary Outputs C, D, E & F
2 A DC at supply voltage

Package List:
1 x Generator Controller
2 x Set Screws
